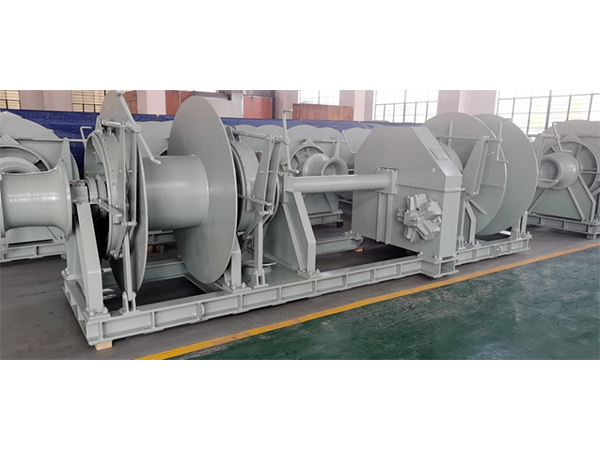

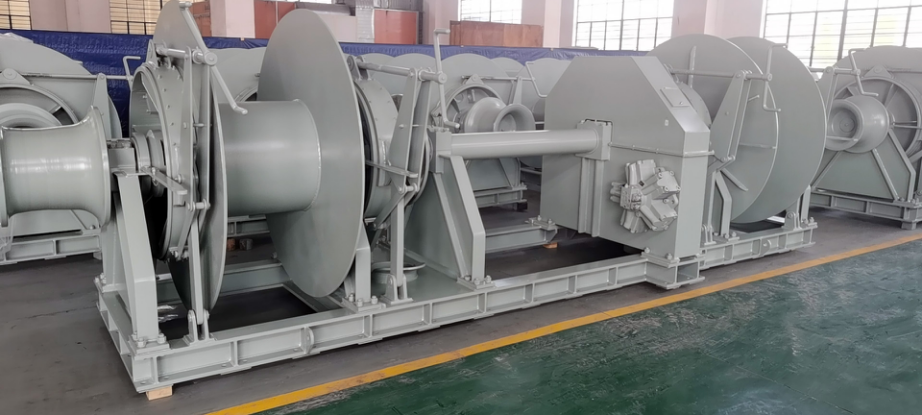

Hydraulic mooring winch

Hydraulic mooring winch

Marine winch, also known as winch. This product has high versatility, compact structure, small size, light weight, heavy lifting capacity, and convenient use and transfer. It is used for lifting or towing ship equipment. Marine hydraulic winches are single drum and double drum pneumatic winches. Winches are light and small lifting equipment that use drums to wind steel wire ropes or chains to lift or tow heavy objects, also known as winches. Winches can be used alone or as components of lifting and hoisting machinery. They are widely used due to their simple operation, large rope winding capacity, and convenient relocation.


Details

Tags

Hydraulic Mooring winch


Marine winch, also known as winch. This product has high versatility, compact structure, small size, light weight, heavy lifting capacity, and convenient use and transfer. It is used for lifting or towing ship equipment.


Marine hydraulic winches are single drum and double drum pneumatic winches. Winches are light and small lifting equipment that use drums to wind steel wire ropes or chains to lift or tow heavy objects, also known as winches. Winches can be used alone or as components of lifting and hoisting machinery. They are widely used due to their simple operation, large rope winding capacity, and convenient relocation.


Hydraulic winches are mainly designed for winches with larger rated loads. Generally, winches with a capacity of 10T or more to 5000T are designed as hydraulic winches.


Wanlida has a professional design team that develops and manufactures marine thrusters and deck machinery equipment. The products have the characteristics of stable performance, high efficiency, low noise, and simple operation.


The company has passed the quality system certification and has been recognized by domestic and foreign classification societies such as CCS in China, BV in France, LR in the UK, GL in Germany, ABS in the US, RINA in Italy, DNV in Norway, NK in Japan, etc.


For more information, please feel free to contact us: tina@wealidacn.com

Main Performance Parameters
Hydraulic Mooring winchRated Pull
(kN)
Rated Speed
(m/min)
Drun Capacity
(m)
Motor PowerHydraulic Mooring winchRated Pull
(kN)
Rated Speed
(m/min)
Drun Capacity
(m)
Motor Power
WYJ2020≥12Φ15*1007.5WYJ300300≥10Φ52*25090
WYJ4040≥12Φ17.5*10011WYJ400400≥10Φ56*250110
WYJ5050≥12Φ20.5*18022WYJ500500≥10Φ56*250132
WYJ8080≥12Φ26*20030WYJ600600≥8Φ56*2502*90
WYJ100100≥10Φ30*20037WYJ700700≥8Φ56*2502*90
WYJ160160≥10Φ30*25045WYJ800800≥8Φ56*2502*110
WYJ200200≥10Φ41*25055WYJ900900≥8Φ60*2502*110
WYJ250250≥10Φ44.5*25075WYJ10001000≥8Φ60*2502*110

Note: The above parameters and specifications are not fixed and can be designed according to customer needs.
