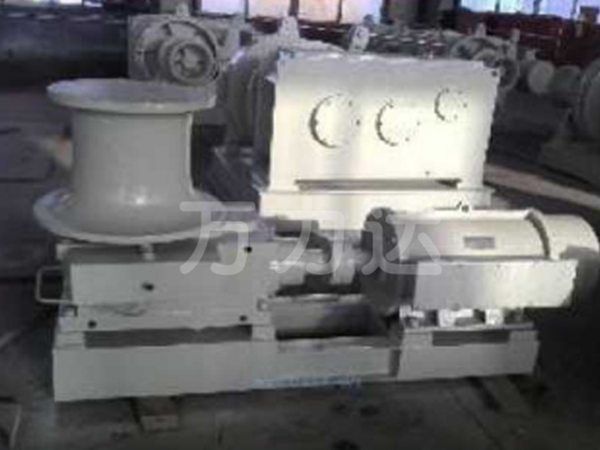

Horizontal winch
Horizontal winch
| Rope Capstan | ||||||||||||
 | ||||||||||||
| Marine winch, as an anchor winch or traction winch, is a device installed on the deck structure of a ship. Marine winches can be divided into four types based on their driving methods: manual winches, electric winches, pneumatic winches, and hydraulic winches. Wanlida has a professional design team that develops and manufactures marine thrusters and deck machinery equipment. The products have the characteristics of stable performance, high efficiency, low noise, and simple operation. The company has passed the quality system certification and has been recognized by domestic and foreign classification societies such as CCS in China, BV in France, LR in the UK, GL in Germany, ABS in the US, RINA in Italy, DNV in Norway, NK in Japan, etc. For more information, please feel free to contact us: tina@wealidacn.com | ||||||||||||
| Main Performance Parameters | ||||||||||||
| Electric Capstan | Rated Load (kN) | Warping Speed (m/min) | Motor Power (kw) | Electric Capstan | Rated Load (kN) | Warping Speed (m/min) | Motor Power (kw) | |||||
| WDE5 | 5 | ≥12 | 3/1.2 | DE50 | 50 | ≥12 | 22/22/16 | |||||
| WDE10 | 10 | ≥12 | 4.3/1.7 | DE70 | 70 | ≥12 | 30/30/22 | |||||
| WDE15 | 15 | ≥12 | 8.5/3.5 | DE100 | 100 | ≥12 | 45/45/30 | |||||
| WDE20 | 20 | ≥12 | 11/11/7.5 | DE120 | 120 | ≥12 | 60/60/45 | |||||
| WDE30 | 30 | ≥12 | 16/16/11 | DE150 | 150 | ≥12 | 60/60/45 | |||||
| WDE30-50 | 30/40/50 | ≥12 | 22/22/16 | |||||||||
Note: This parameter table is for reference only, and specific specifications can be designed according to customer needs.
| ||||||||||||
